LOOP-IT

by neuroConn Technologies

all-in-one solution that sets new standards in neuroscience lab equipment

neuroconn-closed-loop-solutions
Closed-Loop application
products_neuroConn_Closed-Loop_solution
Closed-Loop - Live
neuroconn_loop-it_closed-loop
LOOP-IT - variable and customizable

Features

Galvanically ilsolated modules with different functionality:
  • EEG / ECG / EMG biosignal acquisition (up to 1 ksps)
  • tDCS / tACS / tRNS current sources (low 1/f noise,­ < 5 mApp,
    < 5 kHz bandwidth)
  • neuromuscular electrical stimulation (NMES) (< 200 kHz, full scale rise time: 1 µs; high-power (+/- 40 mA) and high speed application up to 1 ms duration in constant current applications (+/- 15 mA)
  • multichannel digital I/O interface (e. g. TMS, event-related potentials)
  • additional sensor interfaces for non-electrical biosignals (e. g. movement, breathing, blood flow, temperature)

    Real-time system for physiological oscillation phase-dependent stimulation:
    We provide a system enabling state-dependent and closed-loop controlled experiments in a stable time regimen with 1 - 3 ms turn-around time:

    • data acquisition of ExG (EEG, ECG, EMG), 3-axis acceleration 24 bit / 1 kHz
    • data analysis of amplitude, frequency, latency, phase
    • modulation and control of the actuators tES / NMES / TMS

    Direct access to hardware parameters via supplied library (Python)
    Medical-grade hardware design
    Standard interface and compact design

Applications

Conventional applications on TMS
  • Collecting EMG for MEP investigations during TMS for read out on M1
  • Collecting ECG for HR investigations during TMS for read out on DLPFC
  • Collecting EEG for TEPP investigations during TMS for read out on the whole brain


EEG & NIBS (8x EEG, 1x DIO)
  • towards personalised therapeutic brain-state dependent therapies in rehabilitation and psychiatry


NIBS (2x tES)

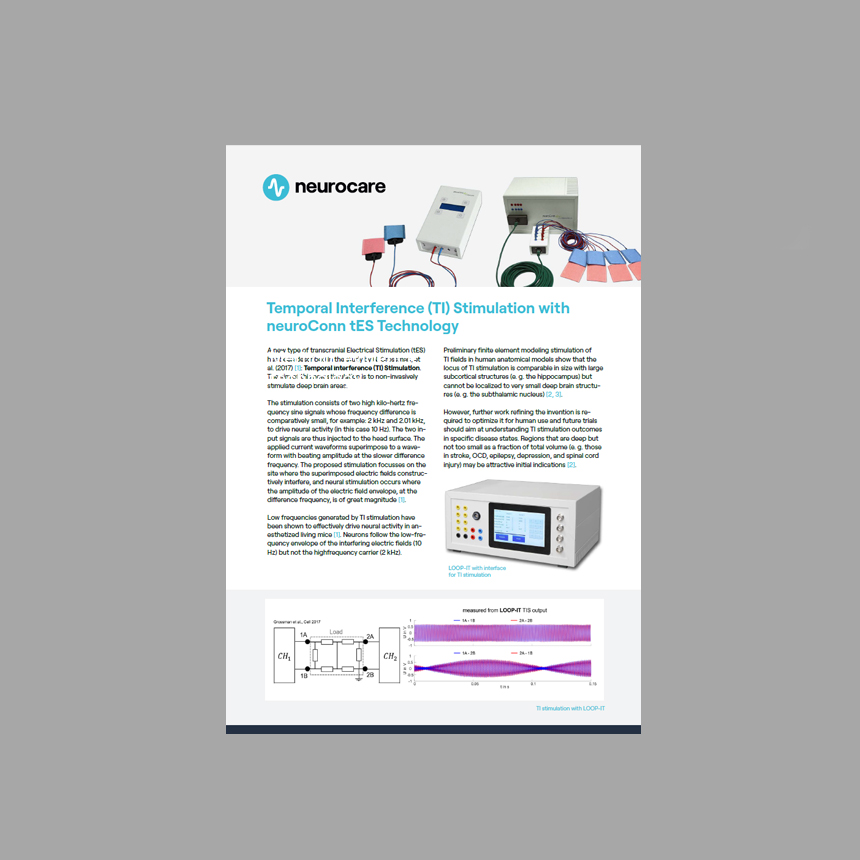

  • Temporal interference stimulation for enabling targeted structures deep inside the brain by steering the electric fields of maximum amplitude modulation


NIBS & NMES (1x tES, 1x NMES)
  • Phase-dependent modulation of human corticospinal plasticity by associative pairing of transcranial and neuromuscular stimulation (tES & NMES)

product information for download

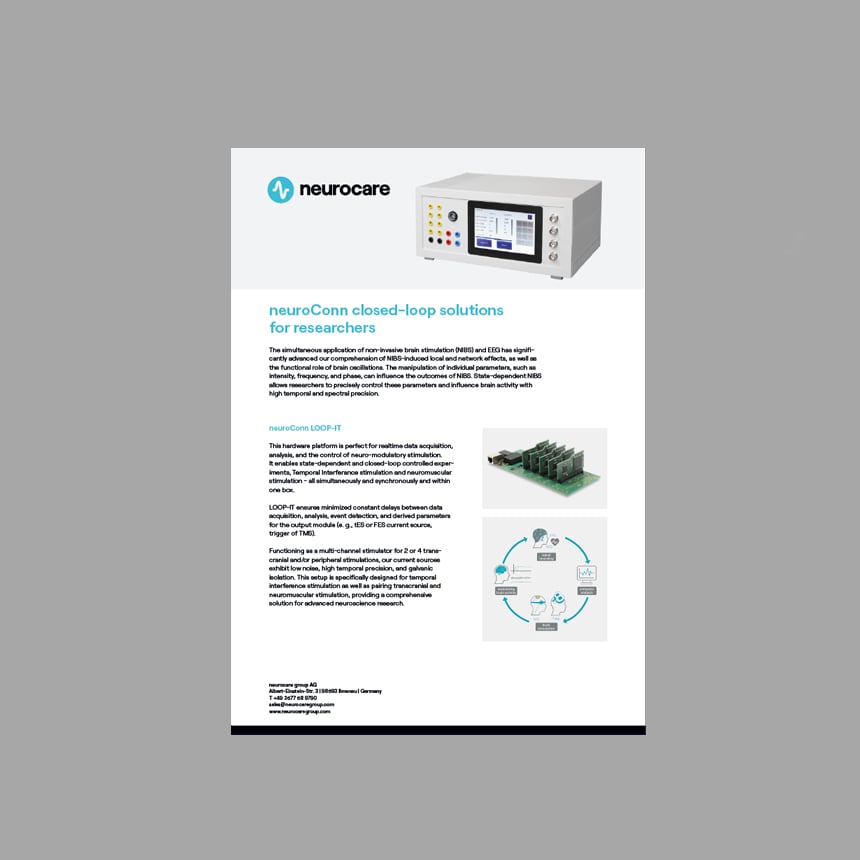

Product data sheet LOOP-IT

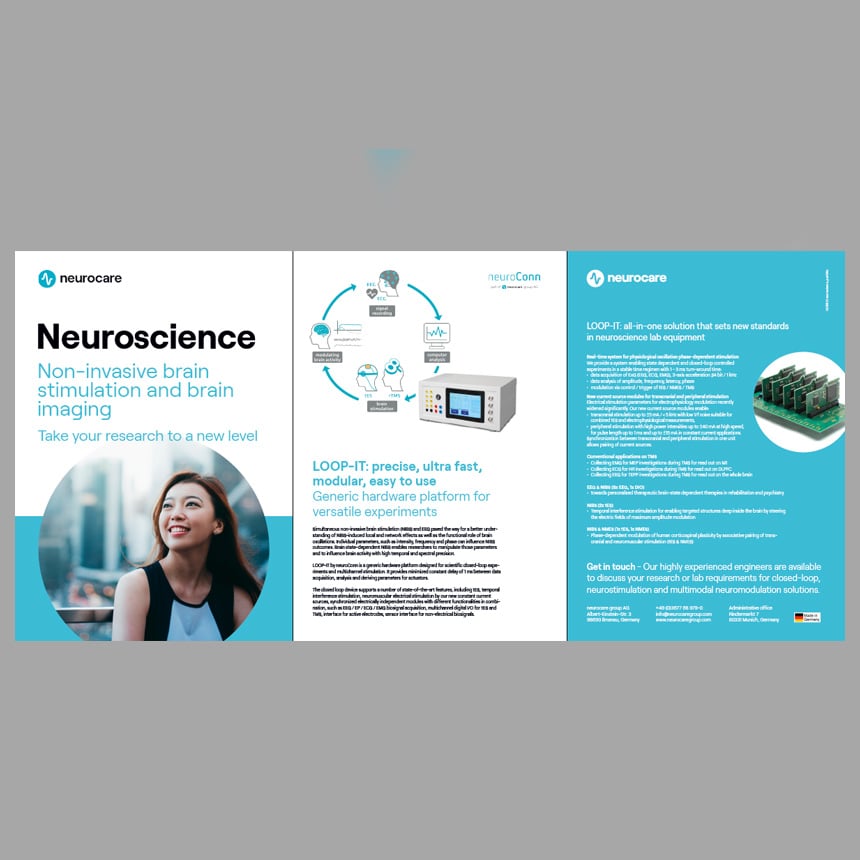

Portfolio for research incl. LOOP-IT

LOOP-IT: sets new standards in neuroscie...

Poster

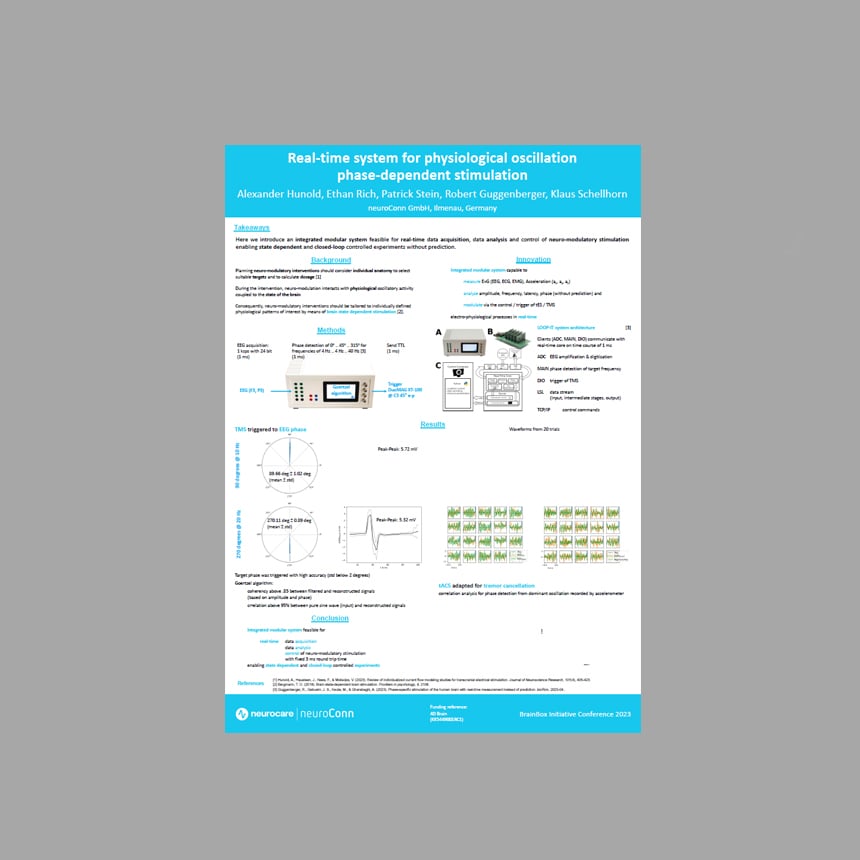

Real-time system for physiological oscillation phase-dependent stimulation

Poster

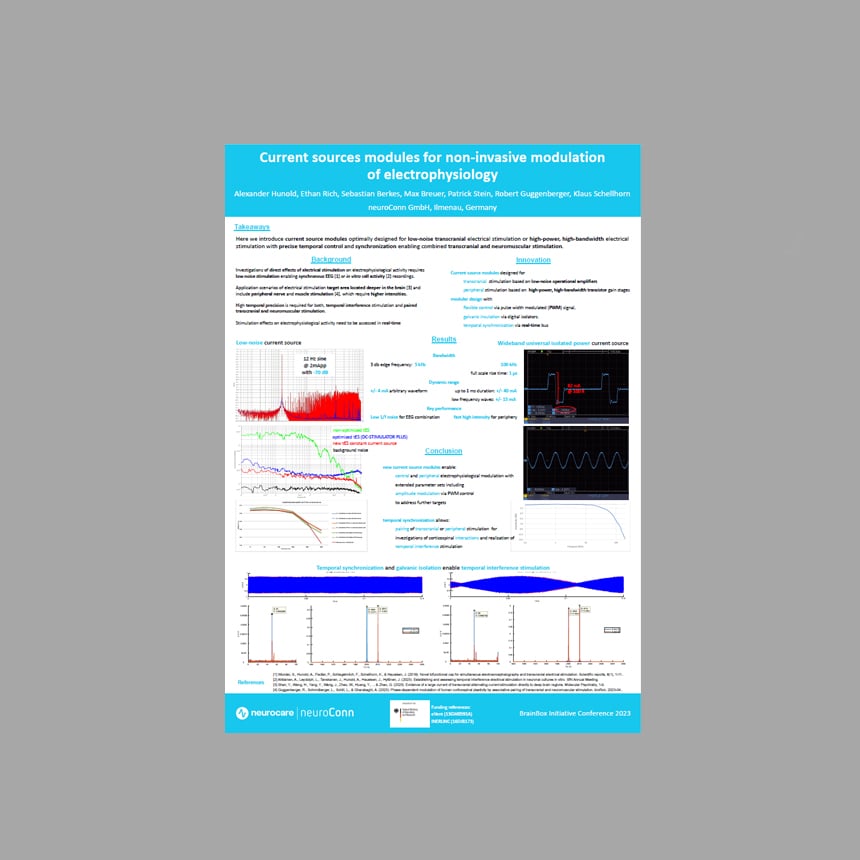

Current sources modules for non-invasive modulation of electro­physiology

Accessories

We offer a wide range of accessories for EEG acquisition and tES application, including electrodes of various dimensions and shapes, cables, caps and conduction pastes. Products can be ordered individually or in a set. We will also be happy to advise you which electrodes are best suited for your project.

For EEG acquisition
For tES application

products_dc_stimulator_5-1
neurocare_exhibitions_Closed-Loop


Our highly experienced engineers are available to discuss your research or lab requirements for closed-loop, neurostimulation and multimodal neuromodulation solutions.

Enquire today

We are here to help you find the right technology and training for your practice or research
