DC-STIMULATOR PLUS

Transcranial stimulation device for neuroscientific research in tDCS, tACS or tRNS

Straight to:

Features

Hardware & Software options

Product-specific downloads

Further tDCS-related downloads

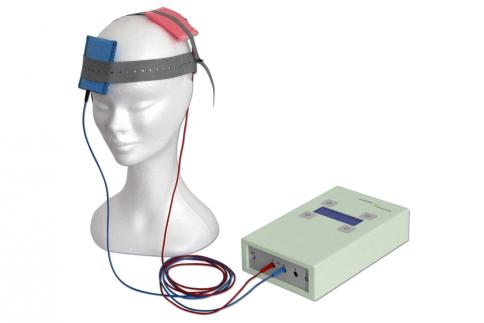

DC-STIMULATOR_with-cap

The DC-STIMULATOR PLUS is a stimulator for use in scientific research that provides stimulation with weak currents, either direct or alternating, (transcranial Electrical Stimulation tES), within non-invasive Interventional Neurophysiology. The electrical charge and current density applied through a constant current source are far below the threshold for releasing a stimulus. Depending on the duration, the used current, the current density, and the frequency of the stimulation has a modular effect on existing neuronal elements by either activating or inhibiting cortical activity.

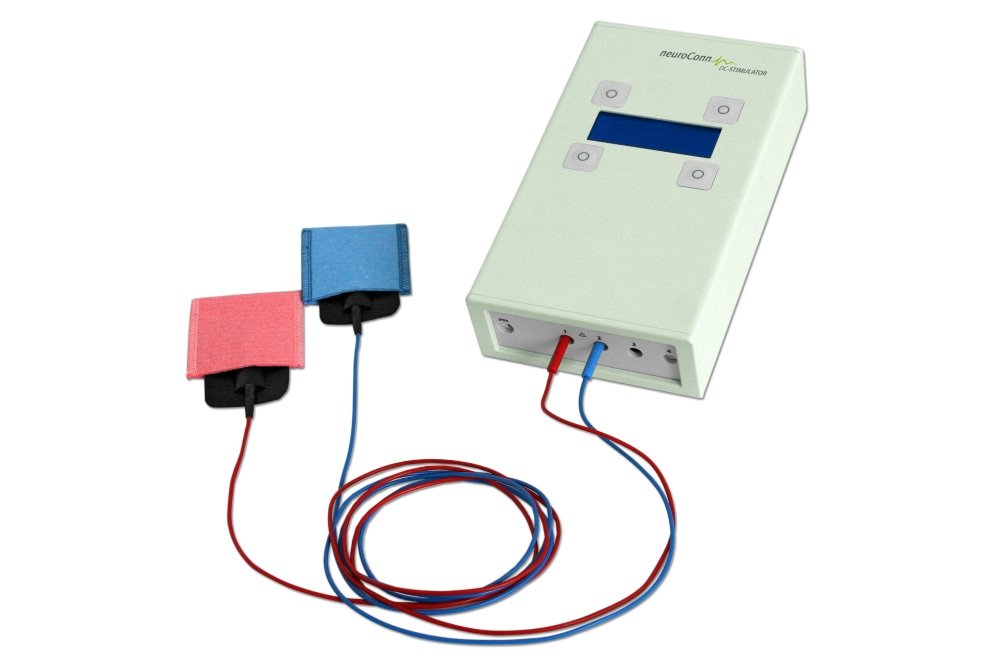

DC-STIMULATOR

DC-STIMULATOR_accessories_set of electrodes and cables

Features

The DC-STIMULATOR PLUS is a micro-processor-controlled constant current source. It meets the highest safety standards thanks to (hardware- and software-based) multistage monitoring of the current path. By continuously monitoring electrode impedance it can detect insufficient contact with the skin and automatically terminate stimulation. This is a reliable method of excluding any injury to the patient.

Besides transcranial direct current stimulation (tDCS) the DC-STIMULATOR PLUS also makes it possible to conduct bi-polar stimulation (tACS)

1 channel stimulation

tDCS - transcranial direct current stimulation

bipolar stimulation with tACS (transcranial alternating current stimulation) and tRNS (transcranial random noise stimulation)

adjustable range of current ±4,500 µA, maximum adjustable current strength ±1,500 µA (peak-to-peak)

adjustable application time up to 30 minutes

frequencies adjustable up to 250 Hz, phase freely adjustable

4 standard modes - tDCS (continuous stimulation) - pulse (cyclical stimulation activation/deactivation) - sinus (sinus wave) - noise (normally distributed)

customer-specific programs possible (optional)

extension for use of the DC-STIMULATOR PLUS in fMRI scanners (optional)

tES caps for therapy and research

With the new innovative tES caps, you can place the anode and cathode for tDCS and tACS precisely over predefined areas of the brain.

Learn more

2024_Mann-mit-Haube-und-DC-STIMULATOR-MOBILE_1

DC-STIMULATOR accessories

We offer a wide range of accessories, including electrodes of various dimensions and shapes, cables as well as conduction paste. Products can be ordered individually or in a set. We will also be happy to advise you which electrodes are best suited for your project.

Complete list of starter sets and accessories

Hardware & Software Options

Schedule mode to set up a treatment schedule for your patient

For the safe and controlled operation of the device outside a hospital or doctor's surgery. The therapist sets up the parameters of the stimulation and a schedule. The patient can do nothing but start the stimulation at the predefined time. The patient cannot make any changes to the settings. An internal logfile records all actions for later analysis.

Study mode for double-blind studies

The study mode encodes sham and active stimulation using one out of 200 5-digit codes. There are four settings available to meet even complex study conditions. The parameters can be set individually. As long as the study mode is enabled, only the study manager can change the parameters.

fMRI Add-on

The DC-STIMULATOR PLUS can be extended with filter boxes and cables for operation within an fMRI scanner. This optional module allows artefact-free MR images even during EPI sequences. The module has been tested for 1.5 and 3 Tesla scanners.

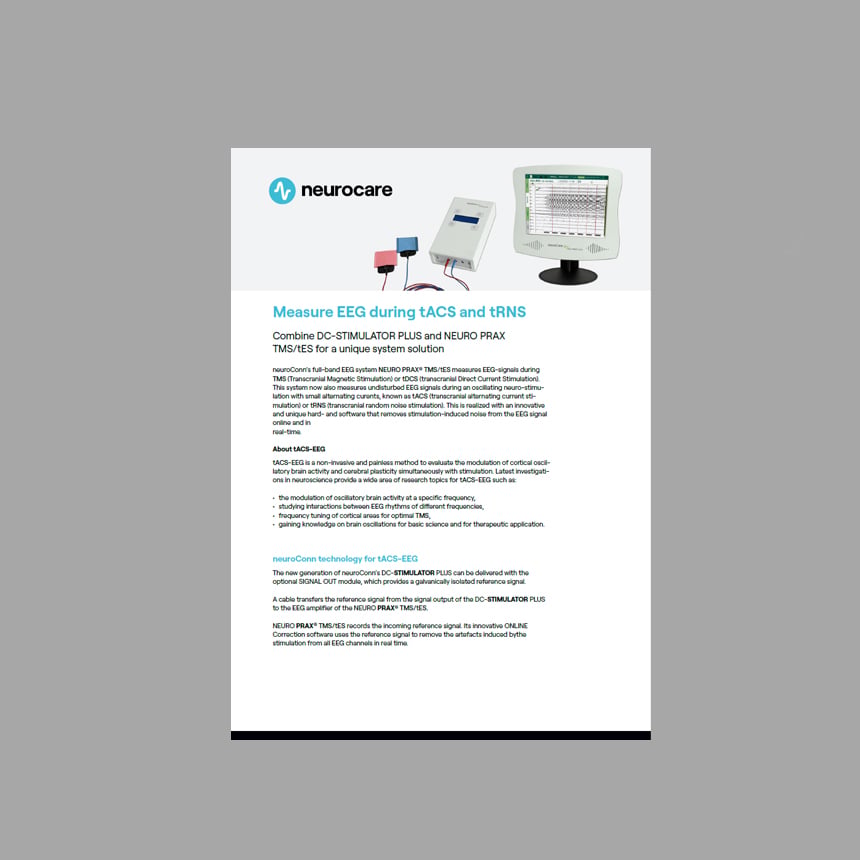

Signal Out for EEG measurement during tACS / tRNS

Signal Out allows you to track, analyse and process the voltage waveform the DC-STIMULATOR PLUS sends out to external devices. In combination with our EEG-system NEURO PRAX^® TMS/tES you can measure online-corrected EEG signals even during tACS/tRNS. This is unique worldwide.

Operation via externally controlled voltage source (option "Remote")

The REMOTE mode enables you to operate the DC-STIMULATOR PLUS externally controlled by a voltage supply source. The generated current follows proportionally to the applied voltage. Hereby - voltage source and the output of the constant current source are galvanically isolated.

Trigger In

When the trigger in module is enabled, the selected stimulation setting can be started via a voltage impulse. So several stimulators can be operated simultaneously or a stimulation can be triggered by a defined event.

Trigger Out

In the modes „Sinus“ and „Pulse“ the stimulator provides a signal which is coherent with the signal of the stimulation. The signal is galvanically isolated from the voltage source and can be processed by external software.
