Brainsight TMS

for MRI-based TMS Neuronavigation

Straight to:

Application

Specifications

Integration with EEG imaging

products_BRAINSIGHT_TMS_Logo_

In transcranial magnetic stimulation (TMS), a pulsating magnetic field affects the electrical activity of nerve cells in the brain.

This requires precise positioning of the magnetic coil over the region to be stimulated in the brain. In TMS studies, the coil is positioned over the head using external landmarks and measurements or by trial and error until the desired response (finger twitch for example) is generated.

The Brainsight 2 neuronavigation system by neurocare partner Rogue Research Inc. offers an alternate function: the technology visualizes the client's brain based on MRI data sets in order to move the coil to the desired brain structure and correctly position it.

In current joint development efforts neuroConn GmbH and Rogue Research aim to:

optimize data exchange between LOOP-IT and Brainsight^® TMS systems, facilitating real-time closed-loop applications in neuroscience research
allow stimulation targeting via electric field modelling for TMS and current flow modelling for tES

Application

In traditional TMS studies the coil is positioned over the head using external landmarks and measurements or by trial and error until the desired response (finger twitch for example) is generated. However, in recent years and with the improvement of stereotactic techniques, navigated TMS or Neuronavigation is now possible allowing the TMS coil to be navigated and positioned over a specified target location based upon an individual's MRI image or MRI generated 3D curvilinear reconstruction of the brain. Targets for stimulation can then be identified in numerous ways:

manually by selecting and highlighting the desired structure / locations within the brain, or
by combining anatomical MRI images with areas of activity highlighted with fMRI, EEG or NIRS.

Brainsight TMS

products_BRAINSIGHT_TMS_9-1

Short description of the slide.

products_BRAINSIGHT_TMS_6

Short description of the slide.

products_BRAINSIGHT_TMS_5

Short description of the slide.

products_BRAINSIGHT_TMS_2

Short description of the slide.

products_BRAINSIGHT_TMS_8

Short description of the slide.

products_BRAINSIGHT_TMS_7

Short description of the slide.

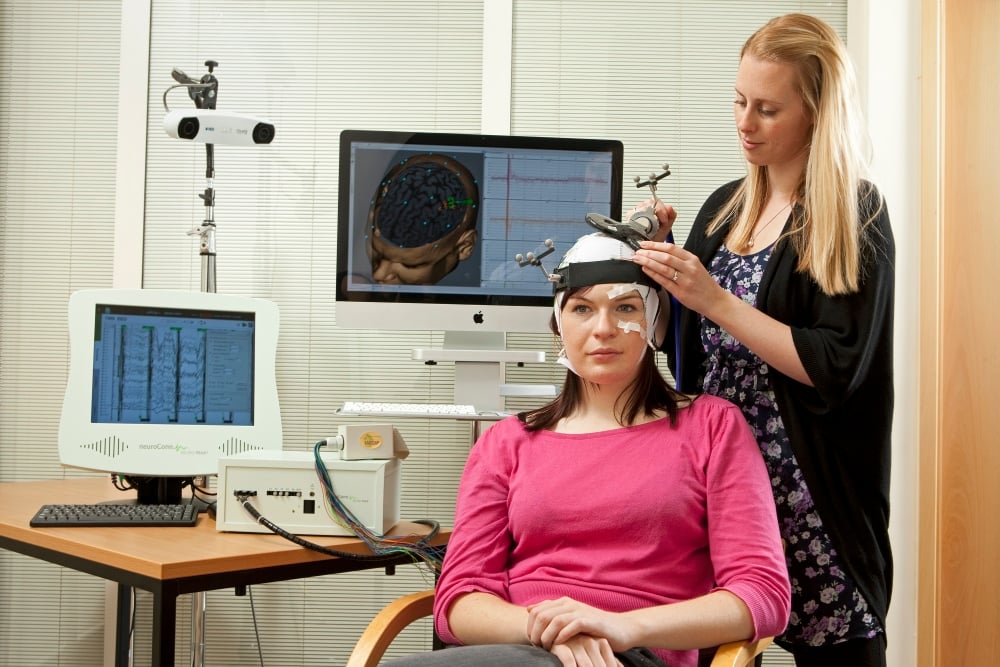

products_BRAINSIGHT_TMS_3

Short description of the slide.

products_BRAINSIGHT_TMS_10

Short description of the slide.

BrainsightTMS_e-field-modelling-tms

Short description of the slide.

Specification of the Brainsight^® TMS Navigation

Definition of targets using either: Anatomy / MNI- or Talairach co-ordinates / MRI overlays (fMRI, EEG, NIRS, PET) / Data aquired from previous TMS sessions

Electric fiel modelling for TMS and/or current flow modelling for tES integrated via SimNIBS

Compatible with all widely used MRI datasets including: DICOM, PAR/REC, Analyze, NIfTI, MINC, BrainVoyager (VMR und VMP)

Directly links to TMS devices via TTL trigger and/or serial port

Integrated 2-channel EMG for mapping studies

Multi-channel EMG mapping via NEURO PRAX^® TMS/tES or LOOP-IT

For each TMS pulse delivered Brainsight^® TMS can record: Coil position and orientation / Coil status (with supported TMS devices) / Intended target / Positioning error / Distance to target / EMG response / heart rate response / EEG response when combined with NEURO PRAX^® TMS/tES / LOOP-IT / NIRS response when combined with Brainsight NIRS

Easy export of recorded data

Track multiple tools (e.g. multiple TMS coils)

New and improved subject chair to help position the subject comfortably and accurately with the added advantage of holding TMS coil(s)

Integration with LOOP-IT

Learn more about LOOP-IT

loop-it freigestellt mit Schlagschatten und screen

In a joint development funded by the German and Canadian government (ZIM, BMWE, NRC IRAP) neuroConn GmbH and Rogue Research aim to optimize data exchange between LOOP-IT and Brainsight^® TMS systems, facilitating real-time closed-loop applications with TMS and tES.

Stimulation targeting via electric field modelling for TMS and current flow modelling for tES: Integrated support for the SimNIBS current modelling software - allows to use SimNIBS in Navigation Workflow to add realistic E-field modelling to the target selection process in TMS and tES.

Integration with NEURO PRAX^® TMS/tES

Learn more about NEURO PRAX^® TMS/tES

NEURO PRAX^® TMS/tES automatically detects and connects to Brainsight^® TMS via WLAN.

Transfer and display of EEG montages within Brainsight space

Use Brainsight to digitise and record EEG electrode positioning.

Transfer EEG data automatically for each TMS pulse trigger.

View EEG data as a list or in a 3D curvilinear view.

Easy export of data to preferred EEG analysis software.

Import results into Brainsight for visualisation.
