DC-STIMULATOR MOBILE

Portable tDCS device for clincial practice and home-based care

DC-STIMULATOR MOBILE in pictures

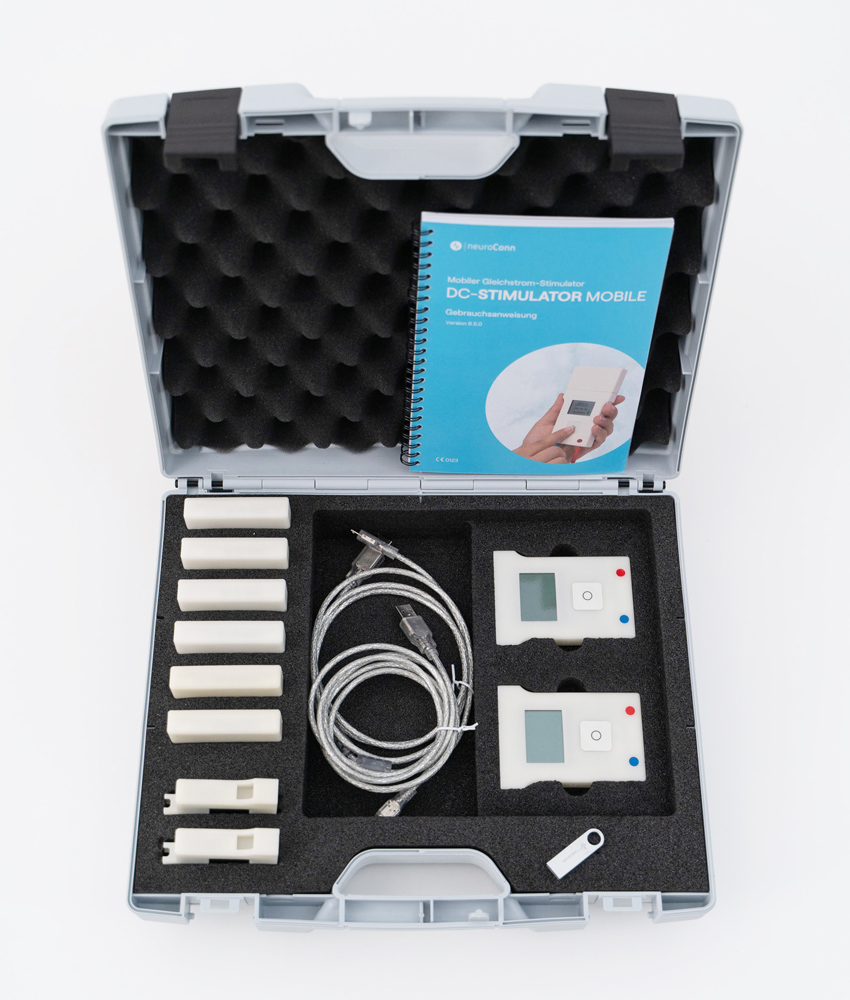

DC-STIMULATOR MOBILE_complete set of devices
DC-STIMULATOR MOBILE_complete set of devices
DC-STIMULATOR MOBILE for tDCS
Short description of the slide.
DC-STIMULATOR MOBILE_components
DC-STIMULATOR MOBILE_components
tDCS_DC-STIMULATOR MOBILE-combined with cognitive training
tDCS_DC-STIMULATOR MOBILE-combined with cognitive training
DC-STIMULATOR MOBILE_tDCS-Man-with-electrode-cap
DC-STIMULATOR MOBILE_tDCS - Man with electrode cap

Applications of the DC-STIMULATOR MOBILE

The DC-STIMULATOR MOBILE can be used as part of the day-to-day routine of therapy centers and practices.

This device is best used when:

  • Therapy is carried out according to a fixed protocol, which isn’t changed
  • Patients are to be treated within fixed time spans.


When ordering the device, the user specifies a stimulation configuration. A configuration can include up to 8 different stimulation sequences, which can then be selected on the stimulator unit. After the device is delivered, the DC-STIMULATOR MOBILE only functions in this mode. This effectively prevents inadvertent or unintended changes to the stimulation parameters and makes the day-to-day usage of the device easier.

If you intend to use the DC-STIMULATOR MOBILE in double blind clinical studies applying transcranial electrical stimulation (tDCS, tACS, rTMS) please contact the manufacturer or responsible sales department.

In clinical research the devices are used by the German Center for Brainstimulation as well as the Charité in Berlin, the LMU in Munich, the University hospital Hamburg-Eppendorf in Germtes worldwide.

"By now, tDCS has become an integral part of our therapeutic approach due to its good efficacy and simple handling. It (...) can be very well integrated into the clinical routine of a psychiatric-psychotherapeutic practice"

Frank Schmidt-Staub - Neurologist and Psychiatrist in Hannover, Germany



psychotherapie-1

Features of the DC-STIMULATOR MOBILE

The DC-STIMULATOR MOBILE unifies easy usage with exceptional patient safety.

The path of the electrical current is constantly monitored by both hardware and software. The continuous monitoring of electrode impedance allows insufficient skin contact to be detected, leading to the stimulation being automatically cut off. Injuries to the patient are thus reliably avoided. For the first time, the DC-STIMULATOR MOBILE makes it possible to analyse the stimulation data recorded by the device after a therapy session.

The DC-STIMULATOR MOBILE is delivered as a so-called Set of Devices (SOD). The basic package (SOD BASIC) can be supplemented as needed for different therapy situations.

The components of the SOD Basic have been designed to allow the user to work as comfortably as possible:

  • Two treatments can be carried out at the same time.
  • Concurrently to a treatment, two storage modules can be prepared and charged. As a result, waiting times between treatments are avoided, which would otherwise be necessary for the charging process.
  • Two further storage modules are kept as a reserve.
  • At least one replacement device is automatically kept available in case of a defect.

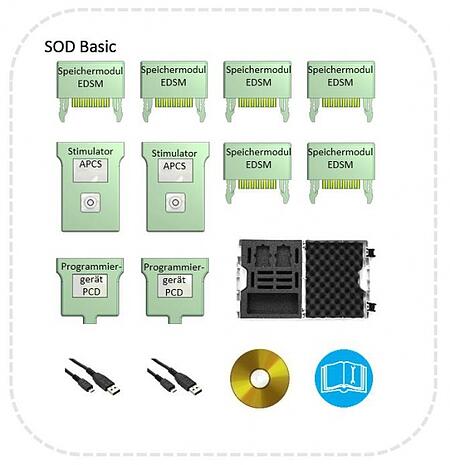

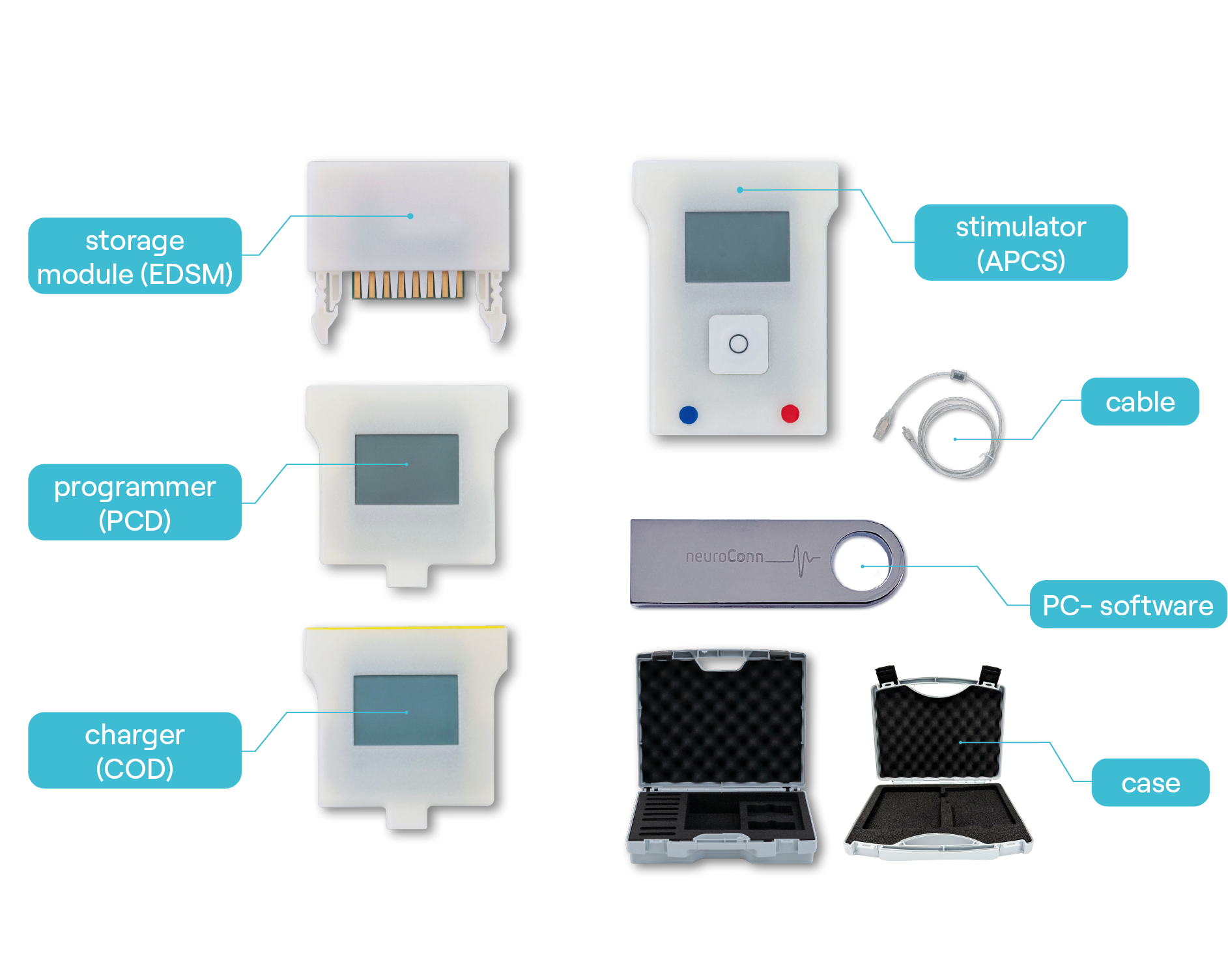

Components of the SOD BASIC

6 Storage modules

The storage module stores the parameters of the next stimulation (stimulation sequence(s), number and order of the enabled stimulation sequences and a start time, if desired), as well as the electrical energy necessary for the operation of the stimulator.

The log-data recorded during an ongoing stimulation is also stored in the storage module.

2 Stimulators

Enter the description for this row.

2 Programmers

The programmer transfers data between the PC software and the storage module and can also charge the battery contained in each storage module.

PC-software

To operate the DC-STIMULATOR MOBILE, a computer with a stable internet connection and a USB port is required. The software provided by neuroCare organises the configuration and charging of the storage modules, as well as the transfer of log-data into the databank.

Case

Each SOD is delivered in a hardshell case. This allows for the devices to be safely transported and conveniently stored.

products_dc_stimulator_mobile_6



Technical Specifications

Stimulation

  • tDCS, DC intensity of -2,000 μA up to +2,000 μA,
  • Deviation of the nominal value of DC current: max. 2 %
  • Hardware offset: ±10 μA
  • Voltage limit: max. ±16 V

Power consumption

max. 0.25 W

Power Supply

Built-in, rechargeable, leak-proof battery within the storage module, recharges via USB

Battery life

Runs continuously for around 90 min (dependant on stimulation mode and battery condition)

Dimensions

(Width x Length x Height)
  • Stimulator: 71 mm x 94 mm x 15 mm, weight 66 g
  • Programmer: 71 mm x 62 mm x 15 mm, weight 46 g
  • Storage module: 71 mm x 39 mm x 15 mm, weight 42 g
  • Charge only device (optional): 71 mm x 61 mm x 15 mm, weight 46 g

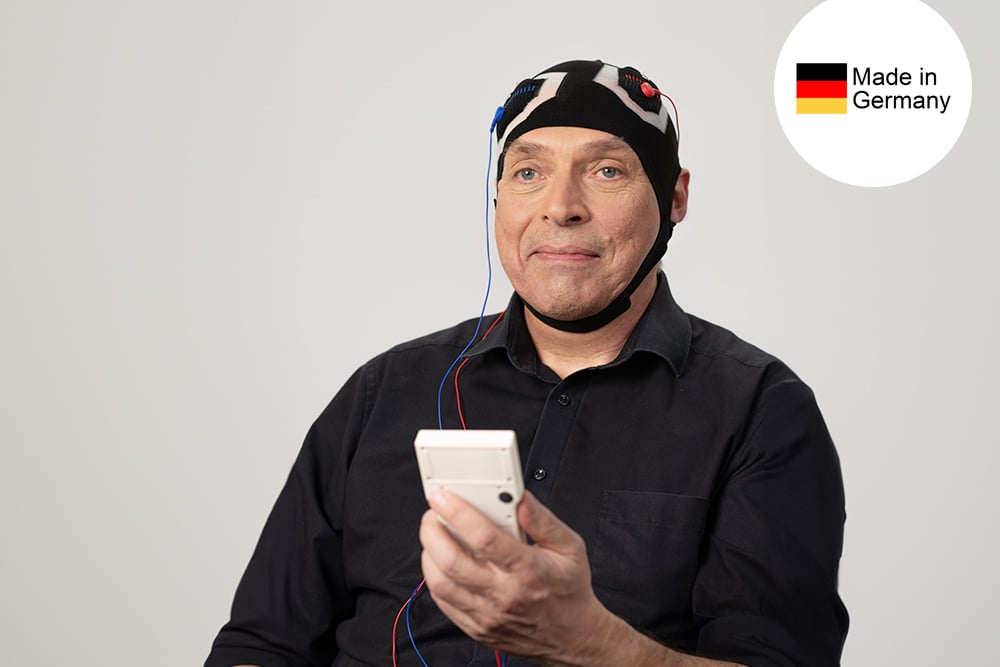

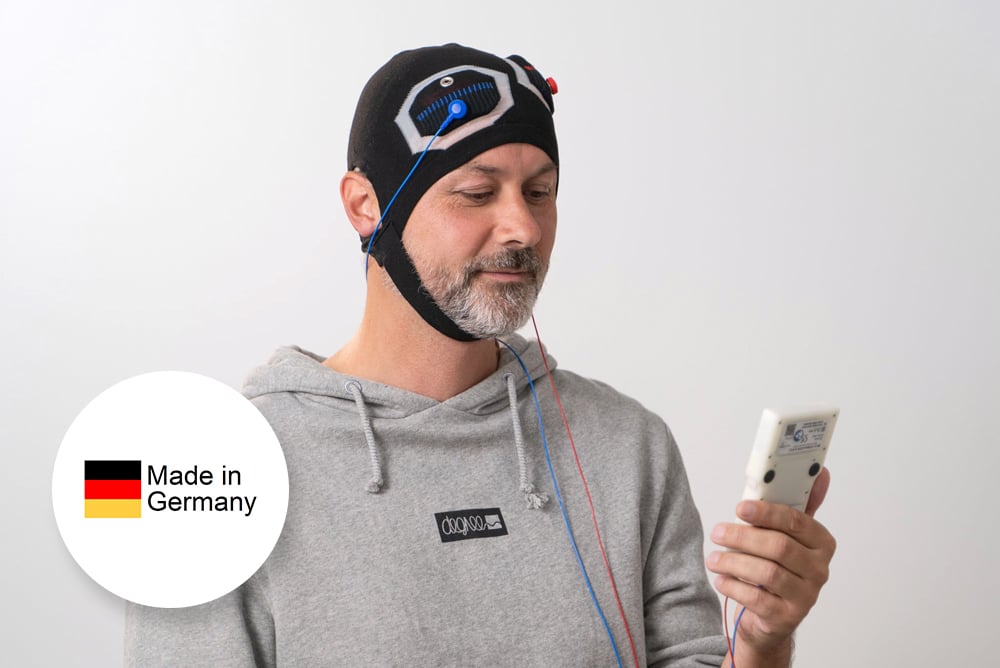

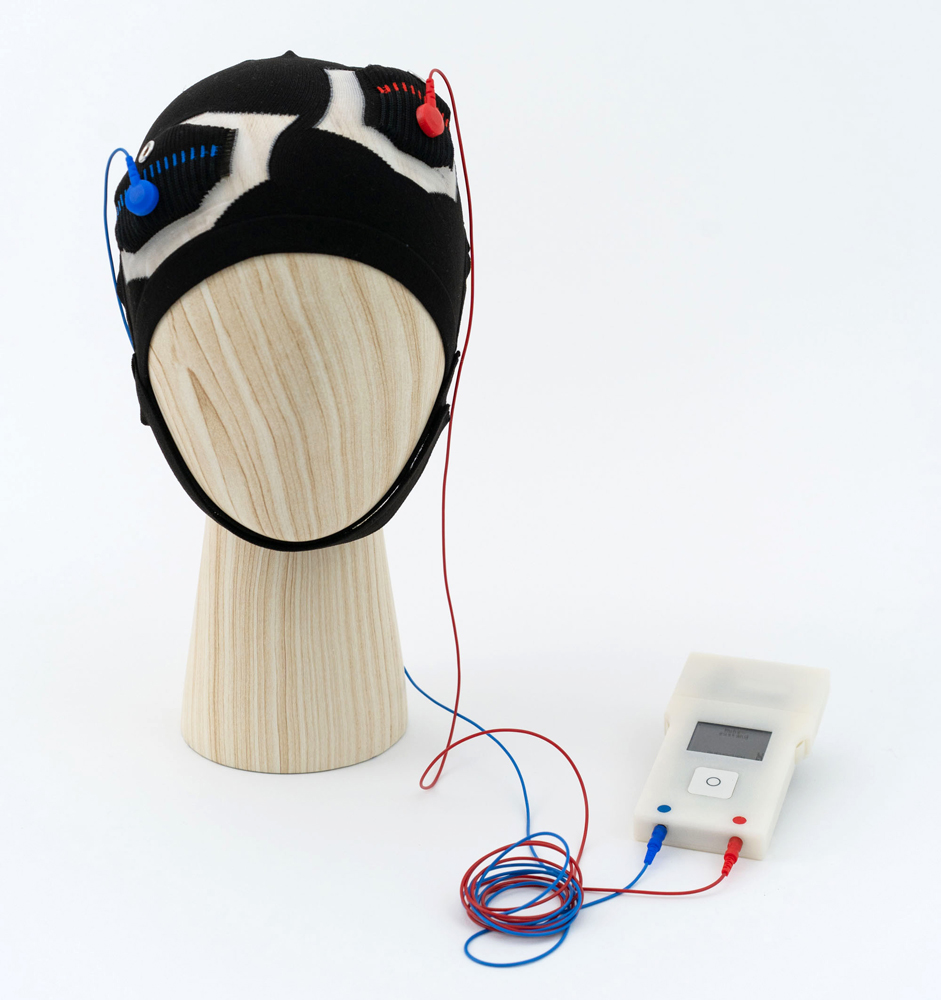

tES caps for therapy and research

With the new innovative tES caps, you can place the anode and cathode for tDCS and tACS precisely over predefined areas of the brain.

2024_Mann-mit-Haube-und-DC-STIMULATOR-MOBILE_1

Accessories for the DC-STIMULATOR MOBILE

The DC-STIMULATOR MOBILE is delivered with an equipment starter set, which contains a set of standard accessories: electrodes of various dimensions, cables, sponges and straps.

All components can be reordered from neuroCare. Please contact us if you wish to reorder complete sets or individual components: sales@neurocaregroup.com or 03677-689790.

305016-2

Use in clinical trials

If you intend to use the DC-STIMULATOR MOBILE in double blind clinical studies applying transcranial electrical stimulation (tDCS, tACS, rTMS) please contact the manufacturer or responsible sales department.

In clinical research the devices are used by the German Center for Brainstimulation as well as the Charité in Berlin, the LMU in Munich, the University hospital Hamburg-Eppendorf in Germtes worldwide.

sq_health-professional

Product-specific downloads

DC-STIMULATOR MOBILE

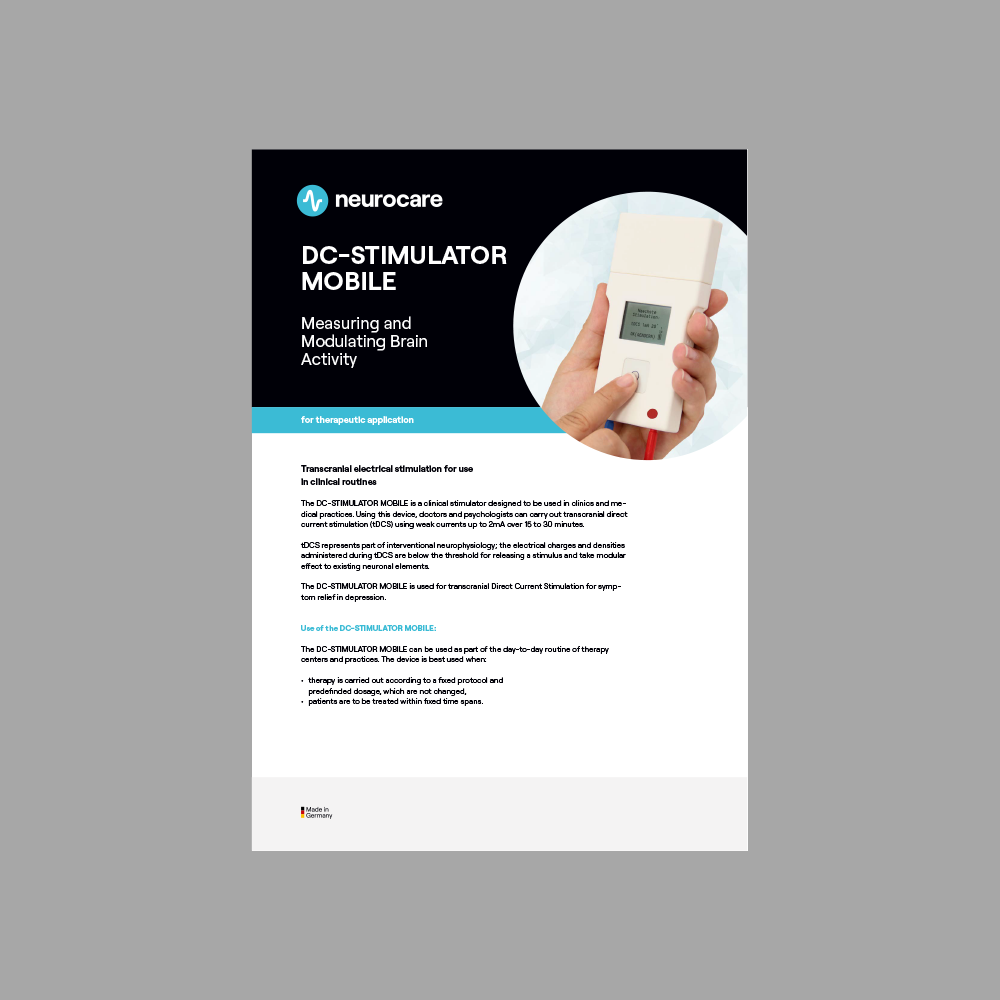

procuct brochure

DC-STIMULATOR MOBILE
product brochure for Australia

DC-STIMULATOR MOBILE

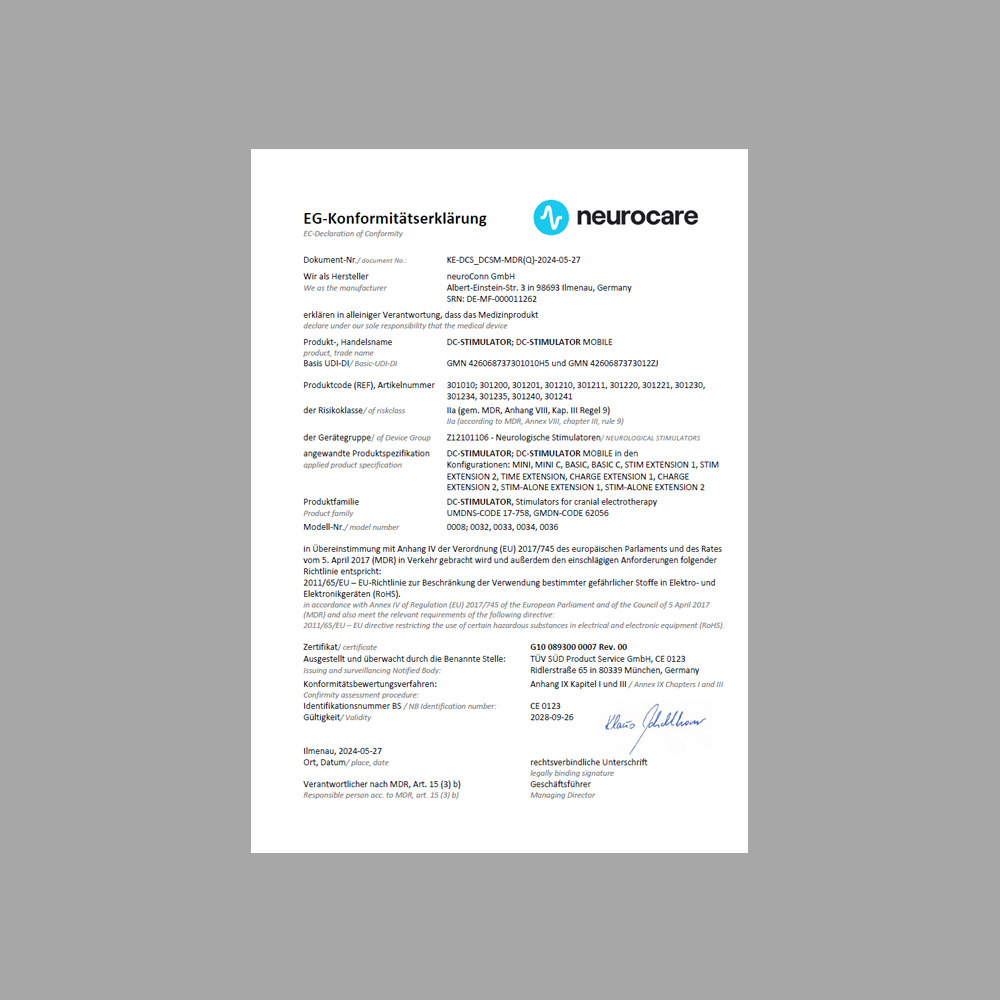

EG declaration of conformity
